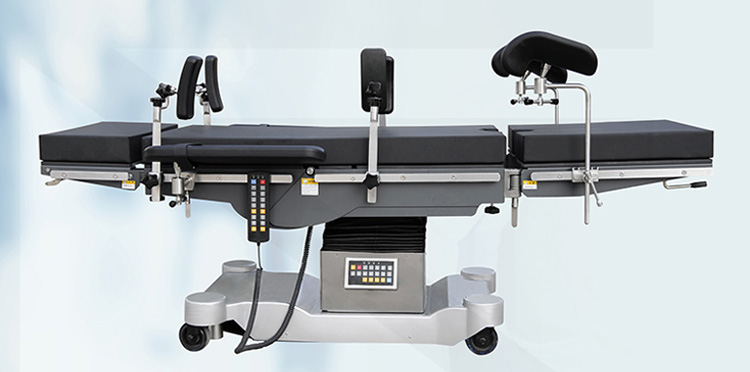

YC-D3 II Electric Hydraulic Operating Table

YC-D3 II Electric Hydraulic Operating Table

YC-D3 II is the result of systematic improvements to offer the best support for the patient and surgical team. It offers unique X-ray and C-Arm capabilities and extreme articulations for perfect and ergonomic access.

YC-D3 II Electric Hydraulic Operating Table

YC-D3 II is the result of systematic improvements to offer the best support for the patient and surgical team. It offers unique X-ray and C-Arm capabilities and extreme articulations for perfect and ergonomic access.
YC-D3 II series is a universal operating table which is flexible, sturdy, mobile and extremely easy to adjust with high quality electro hydraulic drives. It allows for every basic and specialist surgical activities and is widely accepted by surgeons and medical technicians.
The construction of YC-D3 Electrohydraulic Operating Table is fully stainless steel including table top frames, accessories rail, base cover and column telescopic covers.
Seamless mattress in memory foam.
Special antistatic and antibacterial materials used for the pad covers.
One-key horizontal table restores function makes it possible to restore the table to its transverse position quickly no matter what angle the table positioned.
Besides AC power supply, back-up system(Panasonic battery) ensures operability of operating table's basic functions in case of an electronic defect, which doubly boosts the surgical safety during operation.
Detachable and exchangeable head and leg sections which allow for make the table compatible with a C-arm along the entire length of the table.

Electric Hydraulic Operating Table

Features:

● Universal table - very flexible, sturdy, mobile and extremely easy to adjust
● Eccentric column position plus detachable leg and head sections with the possibility to reverse the orientation of leg and head sections make the use of C-arm possible on any part of patient’s body during all types of surgical operations
● Fully stainless steel construction including table top frames, accessories rail, base cover and column telescopic covers
● Integrated weight compensation by rigid locking gas springs facilitates manual adjustment of the head and leg sections
● Split leg sections which can be adjusted independently both in up-down and 90 degrees to the side increase versatility.
● Table top is x-ray translucent without any metallic parts in the middle of the table top, making radiography possible over the entire length patient’s body
● Special antistatic and antibacterial material is used for pad cover
● Pads are easily removable and totally sealed to facilitate cleaning
● Optimally designed base provides ample toe space for the user, along with extreme stability
● High quality hydraulic components are used to ensure reliable and safe operation
● Four easy glide, antistatic castors, two of which are swiveling, ensure mobility
● Electrohydraulically activated central braking system consisting of four brake shoes, disengages all wheels and secures the table rigidly in place.
● The braking system is actuated by control panel.
● Lightweight, user friendly remote control with detachable cable connection
● A safety push button prevent accidental operation of the table
● Height, trendelenburg, lateral tilt, lower back, upper back and central brake are activated from the control panel.
● Designed, manufactured, and tested according to international standards

Electric Hydraulic Operating Table

Specifications:

Length: 2100mm
Width: 560mm
Max Height: 1020mm
Min Height: 600mm
Main Technical Parameters:
Reversed Trendelenburg: ≥30°
Trendelenburg : ≥30°
Lateral Tilt: ≥20°
Head Section Raised from the Horizontal: ≥45°
Head Section Lower from the Horizontal: ≥90°
Back Section Raised from the Horizontal: ≥70°
Back Section Lower from the Horizontal: ≥16°
Leg Section Raised from the Horizontal: ≥8°
Leg Section Lower from the Horizontal: ≥90°
Leg Section Opened: ≥90°
Kidney Bridge Elevation: ≥120mm
Power Supply: AC100-240V 50/60Hz
Packing Size: 1405*725*885mm

Standard Movements

Standard movements covered in all configurations presented.
We offer the best angles within desired configurations.
