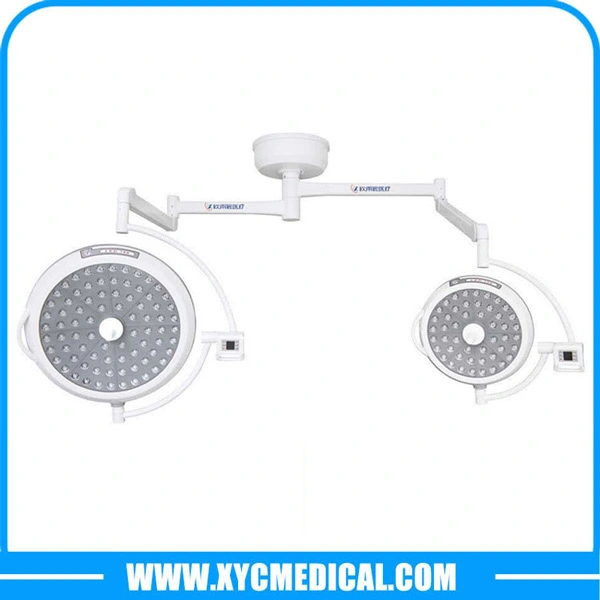

Operating Room Lights for Sale YCLED700/500 LED Surgical Lights

With ergonomic and compact design, YC series operating room lights combines high-end technology, such as eye relaxation design, active shadow management, variable color temperature and so on, to deliver superior illumination performance.

operating room lights

Operating Room Lights Features:

● Ideal for cold lighting
Adopting new LED cold light source, energy saving and environmental protection, service life of more than 60,000 hours.
Surgeon head Temperature increase < 1°C.
LED do not engender infrared ray and ultraviolet radiation, it doesn’t have the temperature rise and tissue damage caused by halogen surgical lights, can accelerate the wound healing after surgery, and has no Radiation pollution.LED color temperature constant, soft, very close to the natural sun light.

● Excellent shadowless effect
Lamp with the most scientific radian,Multi point light source design, so that more fullness of the light spot,When the lamps are partially occluded, also can achieve perfect shadowless effect.
Lamp panel radius of gyration: ≥182cm, the lamp can be pulled to vertical floor, convenient to any angle illumination.

● Excellent deep lighting

● Advanced control system
The use of liquid crystal display button control, to meet the needs of the medical staff of different patients with the brightness of the operation.It offers illuminance memory function.

● Universal suspension system
Rotating arm, a new type of alloy material is made of eight edge type.
Balanced system using imported arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360°, The structure is light, easy to manipulate, accurate positioning, can provide the maximum range of regulation.The equipped with fatigue correcting unit and fix position hand handle device, easy to fix position after long time use.

● Modern laminar lamp
The thickest part of lamp-chimney is not more than 10cm.
The lamp-chimney is made of ABS, The handle on the central of lamp can be detachable, can take high temperature (≤ 134°C) sterilization treatment, easily adjust, flexible fixed.

Operating Room Lights Specifications:

Diameter Of Lamp Cap 700mm 500mm
Illumination Intensity 180,000 Lux 160,000 Lux
Color Temperature 4300±500 K 4300±500 K
Light Spot Diameter 100-300 mm 100-300 mm
Depth of Focus ≥1200 mm ≥1200 mm
Brightness Adjustment (Stepless) 1-100 1-100
Color rendering index ≥97Ra ≥97Ra
Temperature increase at operation area <2℃ <2℃
Temperature increase over surgeon’s head <1℃ <1℃
Radius of operation ≥2200mm ≥2200mm
Radius of working 600-1800mm 600-1800mm
Power Supply AC100-240V 50/60Hz AC100-240V 50/60Hz
Input Power 400VA 400VA
LED Services Life ≥60,000 hours ≥60,000 hours
Lamp Power 1W/3V 1W/3V
Best Install Height 2800-3000mm 2800-3000mm

cold light surgical light
operating room lights features
led surgical lights features

Operating Room Lights Application:

led surgical lights application

medical device service

Article From: Shandong Xinyuchen Medical Equipment Co., Ltd.
